Name: Motor Driver Multilayer PCB Design Fabrication Services Custom Design All Electronic Product Pcb One Stop Service Manufacture
Brand: Shenzhen XZJ Technology Co., Ltd.
SKU: XZJ-PCBA-4
Availability: InStock

Home Products Multilayer PCB

Motor Driver Multilayer PCB Design Fabrication Services Custom Design All Electronic Product Pcb One Stop Service Manufacture

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	XZJ
Model Number:	XZJ-PCBA-4

Contact Now

Detailed Product Description

Base Material:	Multilayer Pcb, FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers	Copper Thickness:	0.4-2mil(10-50um)
Board Thickness:	0.15mm-6.5mm	Min. Hole Size:	0.20mm
Min. Line Width:	0.1mm(4mil)for HDI / 0.15mm(6mil)	Min. Line Spacing:	0.1mm (4mil)
Functional Application:	Medical PCBA Modules	Surface Finishing:	HASL, HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin
Board Size:	HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin	Type:	Pcb Board
Material:	HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin	Product Name:	Air Conditioner Control Pcb Board
Number Of Layers:	2 - 32 Layers	Service:	One-Stop OEM Service
Keywords:	Pcba Aluminum Pcb Board	PCBA Service:	SMD SMT DIP Component Assembly

Why Choose Us

One-Stop
Turnkey Service

Why Choose Us？

☑Components sourcing

☑Software programming
☑SMT&Through holes assembly
☑Functional Test
☑Cable assembly
☑Enclosure assembly
☑Conformal coating
☑Customized packaging

XZJ & STHL

Shenzhen XZJ Technology Co., Ltd. was established in 2014, mainly involved in the operation and

sales of monitoring equipment and media player. In 2014, XZJ began to independently develop PC

and PC peripheral products. In 2015, XZJ and STHL cooperate to build a factory and establish a

strategic partnership. XZJ is committed to the development and sales of PC products, while STHL is

responsible for production, forming an integrated production management model from product

development to product production

Products Description

PCB Item	Manufacture Capacity
Layer Counts	1--20L
Base Material	FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
Material Thickness(mm)	0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
Max board size(mm)	1200x400mm
Board Outline Tolerance	±0.15mm
Board Thickness	0.4mm--3.2mm
Thickness Tolerance	±8%
Minimum line/space	0.1mm
Min Annular Ring	0.1mm
SMD Pitch	0.3mm
Holes
Min Hole Size(mechanical)	0.2mm
Min Hole Size(laser hole)	0.1mm
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
Plating
HASL/LF HAL	2.5um
Immersion Gold	Nickel 3-7um Au:1-5u''
Surface Finish	HAL,ENIG,Plated Gold,Immersion Gold,OSP
Copper Weight	0.5--6oz

Our Market Sectors

We offers electronic contract assembly services for a broad range of electronical products. Our list of customers is long, and we have completed thousands of projects for different sectors in the past years. Our customers tend to come back for their next project. We see that as a sign of satisfaction and trust in us.

What Can We Do For You

Cusomers highly appreciate our full turn key services which include material sourcing, SMT & THT assembly, Test Assembly, box build assembly and final packing, as well as dropship and logistics support. We are continuously striving to create value for our partners both traditional industry and new technology fields.

Components Sourcing

PCB Fabrication

SMT PCB Assembly

THT Assembly

Test Assembly

Product Assembly

Product reliability verification

AOI Testing 100% for each board

1.Checks for solder paste conditions

2.Checks for components down to 0201 package

3.Checks for missing components, offset, incorrect parts, polarity, warp, bent pins…

X-RAY inspection

1.Defect inspection in IC encapsulation, eg : layer separation, cracking, void, and line integrity. 2.Possible defects in PCBA manufacturing processes, eg: misalignment, solder bridge and open. Especially for BGA and QFN components.

3.SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

Function test for each board

To have function testing depends on our customers requirement, we will work together with your

engineer to implement functional testing details such as test scope and instructions, test jig design. Our engineer will analysis your PCBA projects and offer some suggestion if you have no idea how to make effective function testing. Normally the testing result can be collected by a computer or recorded manually. If the PCBA board does not pass the testing, repair engineer will check the failure cause and fix it.

Aging Testing

To ensure the finished product's performance and stability of quality, aging test becomes vital.

We provide 8-12 Hours and12-24 Hours Ageing Test.

Manufacturing Centre

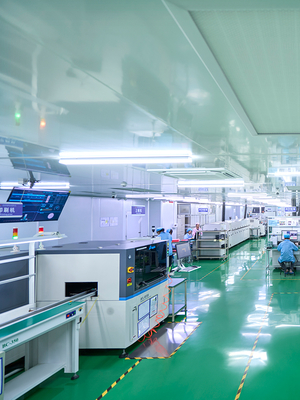

There are 6,000 square meters and more than 150 employees. We have 5 SMT production lines 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines, and many advanced testing instruments include Automatic air shower, X-RAY inspection, Oven, Reflow Soldering, Test Tools.

Our Company

ShenZhen XZJ Technology Co., Ltd., established in 2014, has revolutionized PC and PC peripheral products through its innovative product development and sales methods. In 2015, XZJ established a strategic partnership with STHL, creating a high-tech comprehensive production enterprise integrating development, production, and sales, achieving a high degree of integration from product development to the manufacturing process.

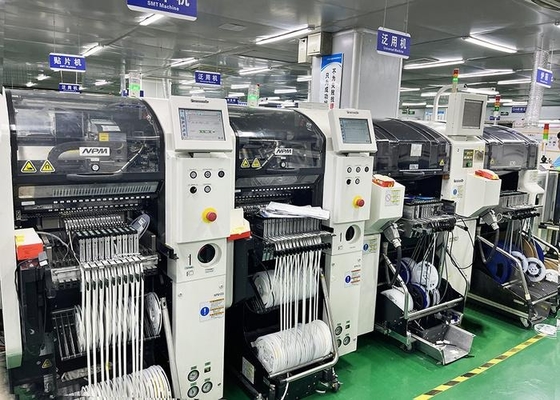

SMT Equipment and Capability
