Name: Custom High-Speed 4-Layer FR4 Circuit Board OEM/ODM Drone Controllers with 24h Turnaround PCB & PCBA Design Service
Brand: Shenzhen XZJ Technology Co., Ltd.
SKU: XZJ-6120
Availability: InStock

Home Products Send Gerber files get your PCBA realized

Custom High-Speed 4-Layer FR4 Circuit Board OEM/ODM Drone Controllers with 24h Turnaround PCB & PCBA Design Service

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	XZJ
Model Number:	XZJ-6120

Contact Now

Detailed Product Description

Base Material:	PCB	Copper Thickness:	0.5oz, 1oz, 2oz, 3oz,4oz, 1oz~4oz
Board Thickness:	0.15mm-6.5mm	Min. Hole Size:	0.20mm
Min. Line Width:	0.1mm (4mil)	Min. Line Spacing:	0.1mm (4mil)
Functional Application:	Artificial Intelligence/Machine Learning, PCB Design/Fabrication	Surface Finishing:	HASL
Board Size:	HASL, Enig, OSP, Immersion Au, AG, Sn	Type:	Pcb Board
Material:	FR-4	Product Name:	Pcb Board Assembly
PCB Assembly Process:	Circuit Board-SMD-DIP-assembly	PCB Test:	100% Electronic Testing
Layer:	1-32 Layers (include Rigid-Flex PCB)	Application:	Electronics Device
PCBA Service:	SMD SMT DIP Component Assembly	Supplier Type:	PCB,PCBA,FPC,HDI,RFPC,PCB Assembly

Why Choose Us

XZJ & STHL

Shenzhen XZJ Technology Co., Ltd. was established in 2014, mainly involved in the operation and

sales of monitoring equipment and media player. In 2014, XZJ began to independently develop PC

and PC peripheral products. In 2015, XZJ and STHL cooperate to build a factory and establish a

strategic partnership. XZJ is committed to the development and sales of PC products, while STHL is

responsible for production, forming an integrated production management model from product

development to product production

Products Description

Product	Custom pcb&pcba & Original IC Electronic components
Brand Name	XZJ PCB & PCBA
Base Material	FR1~FR4/Aluminum/PI/CU
Board Thickness	according to customer`s requirements , 0.4mm-3.2mm
Copper Thickness	0.5oz, 1oz, 2oz, 3oz,4oz
Layer	according to customer`s requirements , 1~58Layers
Certificate	ISO9001/RoHS/CE
Surface Finishing	LeadFree HASL/Immersion Silver/ENIG
Solder mask color	according to customer`s requirements, Green Black Red Blue
Silkscreen	according to customer`s requirements, Black White
Note	Please provide Gerber file and Bom List for quoting
Surface Finishing	0.2
Board Size	0.1
Type	Pcb Board
Material	FR-4

Our Market Sectors

We offers electronic contract assembly services for a broad range of electronical products. Our list of customers is long, and we have completed thousands of projects for different sectors in the past years. Our customers tend to come back for their next project. We see that as a sign of satisfaction and trust in us.

What Can We Do For You

Cusomers highly appreciate our full turn key services which include material sourcing, SMT & THT assembly, Test Assembly, box build assembly and final packing, as well as dropship and logistics support. We are continuously striving to create value for our partners both traditional industry and new technology fields.

Components Sourcing

PCB Fabrication

SMT PCB Assembly

THT Assembly

Test Assembly

Product Assembly

Product reliability verification

AOI Testing 100% for each board

1.Checks for solder paste conditions

2.Checks for components down to 0201 package

3.Checks for missing components, offset, incorrect parts, polarity, warp, bent pins…

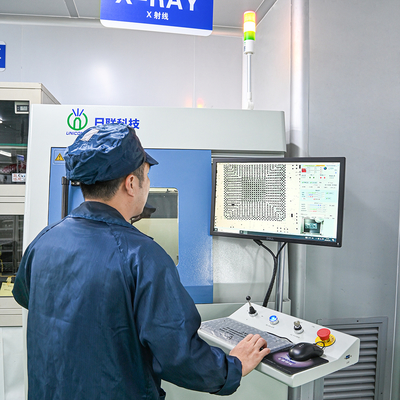

X-RAY inspection

1.Defect inspection in IC encapsulation, eg : layer separation, cracking, void, and line integrity. 2.Possible defects in PCBA manufacturing processes, eg: misalignment, solder bridge and open. Especially for BGA and QFN components.

3.SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

Function test for each board

To have function testing depends on our customers requirement, we will work together with your

engineer to implement functional testing details such as test scope and instructions, test jig design. Our engineer will analysis your PCBA projects and offer some suggestion if you have no idea how to make effective function testing. Normally the testing result can be collected by a computer or recorded manually. If the PCBA board does not pass the testing, repair engineer will check the failure cause and fix it.

Aging Testing

To ensure the finished product's performance and stability of quality, aging test becomes vital.

We provide 8-12 Hours and12-24 Hours Ageing Test.

Manufacturing Centre

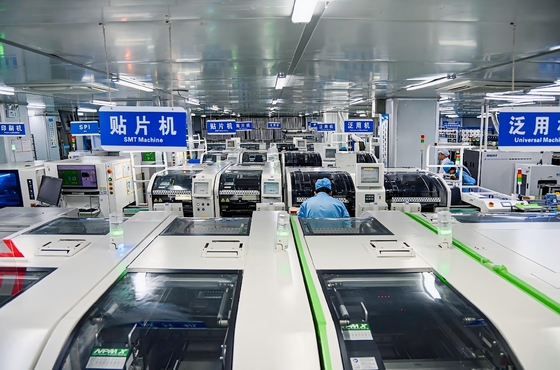

There are 6,000 square meters and more than 150 employees. We have 5 SMT production lines 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines, and many advanced testing instruments include Automatic air shower, X-RAY inspection, Oven, Reflow Soldering, Test Tools.

Automated PCB Feeder

Automated Printing Machine

SPI

Panasonic NPM High-Speed
SMT Machines

Reflow Soldering Machine

ICT / In-Circuit Test

THT Lines

Wave Soldering

Repair Welding Post Welding

Firmware Burning

Function Testing

Conformal Coating

Our Company

ShenZhen XZJ Technology Co., Ltd., established in 2014, has revolutionized PC and PC peripheral products through its innovative product development and sales methods. In 2015, XZJ established a strategic partnership with STHL, creating a high-tech comprehensive production enterprise integrating development, production, and sales, achieving a high degree of integration from product development to the manufacturing process.

The XZJ team consists of 200 employees, including several engineers, and the company covers an area of 6,000 square meters, equipped with comprehensive facilities including 5 SMT high-speed production lines,2 DIP production lines, 2 finished product assembly lines, and 2 functional testing production lines. Global influence is a testament to our quality and capabilities.

Product packaging

FAQ

1. What is one-stop service ?

There are many components in the BOM list. It will take a lot of time to communicate with thedifferent suppliers if customers purchase each components by themselves. We can provide all the components to customers.

2. How long is the quality guarantee period ?
It is 12 months.

3. Do you provide alternative solution ?
We have a stable and reliable supply chain at home.Some components are original in the BOM list,we will use professional
alternative components after the customer 's approval to save cost.

4. Do you provide PCB assembly service ?
We will recommend PCB assembly manufacturers to customers without any commission.

5. What is your lead time ?
It is 2 weeks.

6. What is MOQ ?
No MOQ requirement. The more you buy, the better the price you enjoy.

7. Do I need to pay the sample cost ?
The sample cost will be returned after the mass production order confirmed
