Name: Hot Sales PCB Factory Pcba Board Services Provide BOM Gerber Multilayer Circuit Board for Converter Adaptor Board
Brand: Shenzhen XZJ Technology Co., Ltd.
SKU: XZJ-PCBA-7
Availability: InStock

Home Products Send Gerber files get your PCBA realized

Hot Sales PCB Factory Pcba Board Services Provide BOM Gerber Multilayer Circuit Board for Converter Adaptor Board

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	XZJ
Model Number:	XZJ-PCBA-7

Contact Now

Detailed Product Description

Base Material:	Multilayer Pcb, FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers	Copper Thickness:	0.4-2mil(10-50um)
Board Thickness:	0.15mm-6.5mm	Min. Hole Size:	0.20mm
Min. Line Width:	0.1mm(4mil)for HDI / 0.15mm(6mil)	Min. Line Spacing:	0.1mm (4mil)
Functional Application:	PCB Design/Fabrication	Surface Finishing:	HASL, HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin
Board Size:	HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin	Type:	Pcb Board
Material:	HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin	Product Name:	Converter Adaptor Board
Number Of Layers:	2 - 32 Layers	Service:	One-Stop OEM Service
Keywords:	Pcba Aluminum Pcb Board	PCBA Service:	SMD SMT DIP Component Assembly
Application:	Split Ac Control Pcb Board	Layer:	1-64 Layers

Why Choose Us

One-Stop
Turnkey Service

Why Choose Us？

☑Components sourcing

☑Software programming
☑SMT&Through holes assembly
☑Functional Test
☑Cable assembly
☑Enclosure assembly
☑Conformal coating
☑Customized packaging

XZJ & STHL

Shenzhen XZJ Technology Co., Ltd. was established in 2014, mainly involved in the operation and

sales of monitoring equipment and media player. In 2014, XZJ began to independently develop PC

and PC peripheral products. In 2015, XZJ and STHL cooperate to build a factory and establish a

strategic partnership. XZJ is committed to the development and sales of PC products, while STHL is

responsible for production, forming an integrated production management model from product

development to product production

Products Description

PCB Item	Manufacture Capacity
Layer Counts	1--20L
Base Material	FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
Material Thickness(mm)	0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
Max board size(mm)	1200x400mm
Board Outline Tolerance	±0.15mm
Board Thickness	0.4mm--3.2mm
Thickness Tolerance	±8%
Minimum line/space	0.1mm
Min Annular Ring	0.1mm
SMD Pitch	0.3mm
Holes
Min Hole Size(mechanical)	0.2mm
Min Hole Size(laser hole)	0.1mm
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
Plating
HASL/LF HAL	2.5um
Immersion Gold	Nickel 3-7um Au:1-5u''
Surface Finish	HAL,ENIG,Plated Gold,Immersion Gold,OSP
Copper Weight	0.5--6oz

Our Market Sectors

We offers electronic contract assembly services for a broad range of electronical products. Our list of customers is long, and we have completed thousands of projects for different sectors in the past years. Our customers tend to come back for their next project. We see that as a sign of satisfaction and trust in us.

What Can We Do For You

Cusomers highly appreciate our full turn key services which include material sourcing, SMT & THT assembly, Test Assembly, box build assembly and final packing, as well as dropship and logistics support. We are continuously striving to create value for our partners both traditional industry and new technology fields.

Components Sourcing

PCB Fabrication

SMT PCB Assembly

THT Assembly

Test Assembly

Product Assembly

Product reliability verification

AOI Testing 100% for each board

1.Checks for solder paste conditions

2.Checks for components down to 0201 package

3.Checks for missing components, offset, incorrect parts, polarity, warp, bent pins…

X-RAY inspection

1.Defect inspection in IC encapsulation, eg : layer separation, cracking, void, and line integrity. 2.Possible defects in PCBA manufacturing processes, eg: misalignment, solder bridge and open. Especially for BGA and QFN components.

3.SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

Function test for each board

To have function testing depends on our customers requirement, we will work together with your

engineer to implement functional testing details such as test scope and instructions, test jig design. Our engineer will analysis your PCBA projects and offer some suggestion if you have no idea how to make effective function testing. Normally the testing result can be collected by a computer or recorded manually. If the PCBA board does not pass the testing, repair engineer will check the failure cause and fix it.

Aging Testing

To ensure the finished product's performance and stability of quality, aging test becomes vital.

We provide 8-12 Hours and12-24 Hours Ageing Test.

Manufacturing Centre

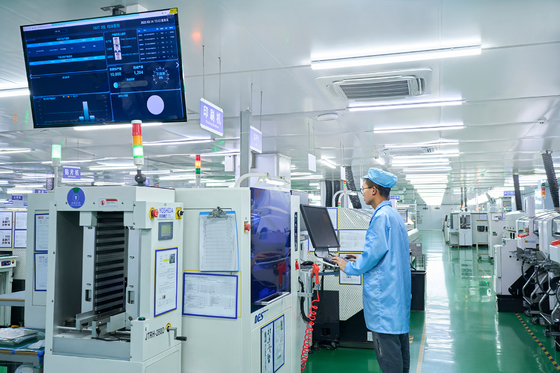

There are 6,000 square meters and more than 150 employees. We have 5 SMT production lines 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines, and many advanced testing instruments include Automatic air shower, X-RAY inspection, Oven, Reflow Soldering, Test Tools.

Our Company

ShenZhen XZJ Technology Co., Ltd., established in 2014, has revolutionized PC and PC peripheral products through its innovative product development and sales methods. In 2015, XZJ established a strategic partnership with STHL, creating a high-tech comprehensive production enterprise integrating development, production, and sales, achieving a high degree of integration from product development to the manufacturing process.

SMT Equipment and Capability

Line order

Equipment

Component package

PCB size range

Components packing type

CHIP(H)

MIN.

MAX.

MIN.

MAX.

Panasonic Line 1

DESEN Classic-1008 + SINIC-TEK + NPM-D3 + NPM-D3 + NPM-D3 + NPM-TT2 + JT NS-1000II + AOI (double track LI-3000DP)

01005

100×90mm
Pitch=0.2mm

50×50mm

510×590mm

290 Tape (reel)
20 Tray

272000

Panasonic Line 2

DESEN Classic-1008 + SINIC-TEK + NPM-D3 + NPM-D3 + CM212 + JT JTR-1203D-N(12 temperature zone nitrogen furnace) + 3D AOI (double
track EDgeD)

01005

100×90mm
Pitch=0.2mm

50×50mm

340×250mm

256 Tape(reel)
20 Tray

206000

Panasonic Line 3

DESEN Classic-1008 + SINIC-TEKNPM-D3+ NPM-D3 + CM212M + RH-500B + JT JTR-1203D-N(12 temperature zone nitrogen furnace) + 3D AOI

01005

100×90mm
Pitch=0.2mm

50×50mm

340×250mm

256 Tape(reel)
22 Tray

206000

Panasonic Line 4

DESEN DPS-1008 + CM402L + CM212M + JT NS-1000 + AOI(JTA-320-2M)

0201

100×90mm
Pitch=0.2mm

50×50mm

510×460mm

336 Tape(reel)
20 Tray

100000

Mirae Line 5

DSP-1008 + MX400 + MX200 + MX200 +
MX200P + JT
NS1000 + AOI (JTA-315-2M)

0603

45×150mm

50×50mm

400×340mm

280 Tape(reel)
20 Tray

79000

Mirae Line 6

DSP-1008+MX200+MX200+MX200P

0603

45×150mm

50×50mm

400×340mm

120 Tape(reel)
22 Tray

30000

Total chips per hour

893000

The XZJ team consists of 200 employees, including several engineers, and the company covers an area of 6,000 square meters, equipped with comprehensive facilities including 5 SMT high-speed production lines,2 DIP production lines, 2 finished product assembly lines, and 2 functional testing production lines. Global influence is a testament to our quality and capabilities.

Product packaging

FAQ

1. Are you a factory ?

Yes. we are a professional factory of PCBA.We warmly welcome you to visit our factory.

2. What is your price terms?
Normally FOB(free on board), CIF(cost insurance and freight), EX-work.
3.which payment terms do you accept?
we usually accept the following payment terms T/T, western union, money gram, Paypal, and if a Larger amount, we also accept L/C and so on. you can also tell us about your payment way !
4.Can you produce the goods as customer design?
Welcome to send us the design or sample, we will calculated the cost and unit price for you as soon as possible.
5.What is your MOQ. And how long is the delivery time?
Our MOQ is 1pc,leadtime is 1 week.
6.How about the products packing?
Flexible packing according to the specific requirements of the clients.
