Name: Custom Flexible PCB & PCBA Circuit Solution Full Protocol Tester Power Supply with LED Manufacture Assembly Module
Brand: Shenzhen XZJ Technology Co., Ltd.
SKU: PD65w
Availability: InStock

Home Products Send Gerber files get your PCBA realized

Custom Flexible PCB & PCBA Circuit Solution Full Protocol Tester Power Supply with LED Manufacture Assembly Module

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	JYWD
Model Number:	PD65w

Contact Now

Detailed Product Description

Base Material:	FR4	Copper Thickness:	0.2
Board Thickness:	0.1	Min. Hole Size:	0.2
Min. Line Width:	0.1	Min. Line Spacing:	0.2
Functional Application:	Battery Charging	Surface Finishing:	0.2
Board Size:	0.1, Customized BMS PCB Modules	Type:	Pcb Board, Custom PCBA
Material:	FR-4	Product Name:	Battery Management Systems
Application:	Electronics Device	Keywords:	PCBA OEM PCB Assembly
Service:	One-stop Turnkey PCBA Service	Usage:	LED Grow Light
Certificate:	ISO9001/Iso14001/CE/ROHS	MOQ:	500PCS

Why Choose Us

One-Stop
Turnkey Service

Why Choose Us？

☑Components sourcing

☑Software programming
☑SMT&Through holes assembly
☑Functional Test
☑Cable assembly
☑Enclosure assembly
☑Conformal coating
☑Customized packaging

XZJ & STHL

Shenzhen XZJ Technology Co., Ltd. was established in 2014, mainly involved in the operation and

sales of monitoring equipment and media player. In 2014, XZJ began to independently develop PC

and PC peripheral products. In 2015, XZJ and STHL cooperate to build a factory and establish a

strategic partnership. XZJ is committed to the development and sales of PC products, while STHL is

responsible for production, forming an integrated production management model from product

development to product production

Products Description

Product	Custom pcb&pcba & Original IC Electronic components
Brand Name	XZJ PCB & PCBA
Base Material	FR1~FR4/Aluminum/PI/CU
Board Thickness	according to customer`s requirements , 0.4mm-3.2mm
Copper Thickness	0.5oz, 1oz, 2oz, 3oz,4oz
Layer	according to customer`s requirements , 1~58Layers
Certificate	ISO9001/RoHS/CE
Surface Finishing	LeadFree HASL/Immersion Silver/ENIG
Solder mask color	according to customer`s requirements, Green Black Red Blue
Silkscreen	according to customer`s requirements, Black White
Note	Please provide Gerber file and Bom List for quoting
Surface Finishing	0.2
Board Size	0.1
Type	Pcb Board
Material	FR-4

Our Market Sectors

We offers electronic contract assembly services for a broad range of electronical products. Our list of customers is long, and we have completed thousands of projects for different sectors in the past years. Our customers tend to come back for their next project. We see that as a sign of satisfaction and trust in us.

What Can We Do For You

Cusomers highly appreciate our full turn key services which include material sourcing, SMT & THT assembly, Test Assembly, box build assembly and final packing, as well as dropship and logistics support. We are continuously striving to create value for our partners both traditional industry and new technology fields.

Components Sourcing

PCB Fabrication

SMT PCB Assembly

THT Assembly

Test Assembly

Product Assembly

Product reliability verification

AOI Testing 100% for each board

1.Checks for solder paste conditions

2.Checks for components down to 0201 package

3.Checks for missing components, offset, incorrect parts, polarity, warp, bent pins…

X-RAY inspection

1.Defect inspection in IC encapsulation, eg : layer separation, cracking, void, and line integrity. 2.Possible defects in PCBA manufacturing processes, eg: misalignment, solder bridge and open. Especially for BGA and QFN components.

3.SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

Function test for each board

To have function testing depends on our customers requirement, we will work together with your

engineer to implement functional testing details such as test scope and instructions, test jig design. Our engineer will analysis your PCBA projects and offer some suggestion if you have no idea how to make effective function testing. Normally the testing result can be collected by a computer or recorded manually. If the PCBA board does not pass the testing, repair engineer will check the failure cause and fix it.

Aging Testing

To ensure the finished product's performance and stability of quality, aging test becomes vital.

We provide 8-12 Hours and12-24 Hours Ageing Test.

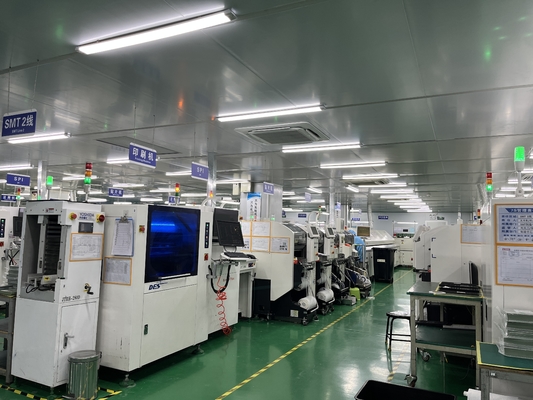

Manufacturing Centre

There are 6,000 square meters and more than 150 employees. We have 5 SMT production lines 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines, and many advanced testing instruments include Automatic air shower, X-RAY inspection, Oven, Reflow Soldering, Test Tools.

Automated PCB Feeder

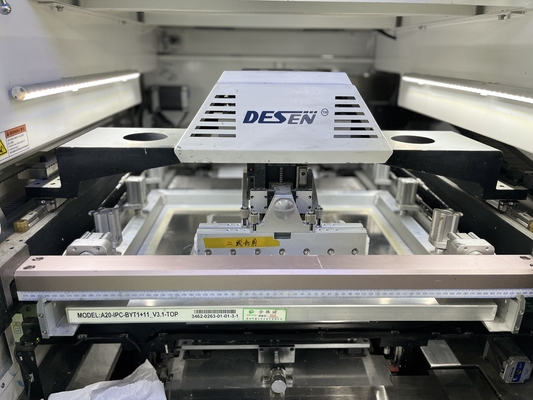

Automated Printing Machine

SPI

Panasonic NPM High-Speed
SMT Machines

Reflow Soldering Machine

ICT / In-Circuit Test

THT Lines

Wave Soldering

Repair Welding Post Welding

Firmware Burning

Function Testing

Conformal Coating

Our Company

ShenZhen XZJ Technology Co., Ltd., established in 2014, has revolutionized PC and PC peripheral products through its innovative product development and sales methods. In 2015, XZJ established a strategic partnership with STHL, creating a high-tech comprehensive production enterprise integrating development, production, and sales, achieving a high degree of integration from product development to the manufacturing process.

The XZJ team consists of 200 employees, including several engineers, and the company covers an area of 6,000 square meters, equipped with comprehensive facilities including 5 SMT high-speed production lines,2 DIP production lines, 2 finished product assembly lines, and 2 functional testing production lines. Global influence is a testament to our quality and capabilities.

Product packaging

FAQ

Q1: Are you the manufacturer of the product?
A: Yes, of course we are. We have own property rights factory.
Q2: Can you provide OEM or ODM services?
A: Yes, we are willing to provide our customers with OEM and ODM services.
Q3. Can you print my logo on the product?
A: Yes, we support.
Q4. What is the warranty?
A: 3 years warranty.
Q5: If the product is out of warranty, what should I do?
A: We will repair it for free.
Q6: Where can I place an order?
A: You can place an order on the website or contact us directly via email.
If you have any other questions, please feel free to contact us.
