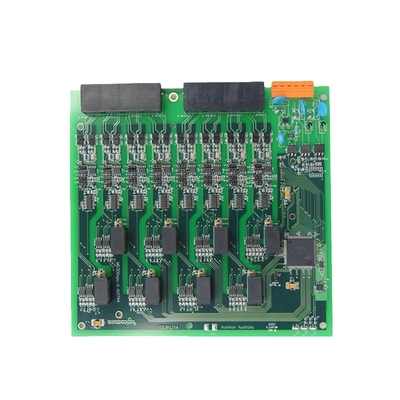

Name: OEM PCB Assembly Low Cost SMT Multilayer Circuit Boards LED Design
Brand: Shenzhen XZJ Technology Co., Ltd.
SKU: PCBA-L02
Availability: InStock

Home Products Send Gerber files get your PCBA realized

OEM PCB Assembly Low Cost SMT Multilayer Circuit Boards LED Design

Product Details:

Place of Origin:	Guangdong, China, Guangdong, China
Brand Name:	XZJ, XZJ
Model Number:	PCBA-L02

Contact Now

Detailed Product Description

Base Material:	High TG FR-4/Aluminum/Ceramic/FR4/Copper Base, High TG FR-4/Aluminum/Ceramic/FR4/Copper Base	Copper Thickness:	0.5 - 6OZ, 0.5 - 6OZ
Board Thickness:	0.2 - 6mm, 0.2 - 6mm	Min. Hole Size:	0.15mm
Min. Line Width:	0.10mm, 0.10mm	Min. Line Spacing:	0.10mm, 0.10mm
Functional Application:	Lighting	Surface Finishing:	OSP,Immersion Gold,Immersion Tin,Immersion Ag, OSP,Immersion Gold,Immersion Tin,Immersion Ag
Board Size:	OEM	Type:	Electronic Board
Material:	FR-4, Aluminum/Ceramic/FR4/Copper Base	Min. Hole Size::	0.15mm

Why Choose Us

One-Stop
Turnkey Service

Why Choose Us？

☑Components sourcing

☑Software programming
☑SMT&Through holes assembly
☑Functional Test
☑Cable assembly
☑Enclosure assembly
☑Conformal coating
☑Customized packaging

XZJ & STHL

Shenzhen XZJ Technology Co., Ltd. was established in 2014, mainly involved in the operation and

sales of monitoring equipment and media player. In 2014, XZJ began to independently develop PC

and PC peripheral products. In 2015, XZJ and STHL cooperate to build a factory and establish a

strategic partnership. XZJ is committed to the development and sales of PC products, while STHL is

responsible for production, forming an integrated production management model from product

development to product production

Products Description

Product	Custom pcb&pcba & Original IC Electronic components
Brand Name	XZJ PCB & PCBA
Base Material	FR1~FR4/Aluminum/PI/CU
Board Thickness	according to customer`s requirements , 0.4mm-3.2mm
Copper Thickness	0.5oz, 1oz, 2oz, 3oz,4oz
Layer	according to customer`s requirements , 1~58Layers
Certificate	ISO9001/RoHS/CE
Surface Finishing	LeadFree HASL/Immersion Silver/ENIG
Solder mask color	according to customer`s requirements, Green Black Red Blue
Silkscreen	according to customer`s requirements, Black White
Note	Please provide Gerber file and Bom List for quoting
Surface Finishing	0.2
Board Size	0.1
Type	Pcb Board
Material	FR-4

Our Market Sectors

We offers electronic contract assembly services for a broad range of electronical products. Our list of customers is long, and we have completed thousands of projects for different sectors in the past years. Our customers tend to come back for their next project. We see that as a sign of satisfaction and trust in us.

What Can We Do For You

Cusomers highly appreciate our full turn key services which include material sourcing, SMT & THT assembly, Test Assembly, box build assembly and final packing, as well as dropship and logistics support. We are continuously striving to create value for our partners both traditional industry and new technology fields.

Components Sourcing

PCB Fabrication

SMT PCB Assembly

THT Assembly

Test Assembly

Product Assembly

Product reliability verification

AOI Testing 100% for each board

1.Checks for solder paste conditions

2.Checks for components down to 0201 package

3.Checks for missing components, offset, incorrect parts, polarity, warp, bent pins…

X-RAY inspection

1.Defect inspection in IC encapsulation, eg : layer separation, cracking, void, and line integrity. 2.Possible defects in PCBA manufacturing processes, eg: misalignment, solder bridge and open. Especially for BGA and QFN components.

3.SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

Function test for each board

To have function testing depends on our customers requirement, we will work together with your

engineer to implement functional testing details such as test scope and instructions, test jig design. Our engineer will analysis your PCBA projects and offer some suggestion if you have no idea how to make effective function testing. Normally the testing result can be collected by a computer or recorded manually. If the PCBA board does not pass the testing, repair engineer will check the failure cause and fix it.

Aging Testing

To ensure the finished product's performance and stability of quality, aging test becomes vital.

We provide 8-12 Hours and12-24 Hours Ageing Test.

Manufacturing Centre

There are 6,000 square meters and more than 150 employees. We have 5 SMT production lines 2 DIP production lines, 2 functional testing production lines, 2 finished product assembly lines, and many advanced testing instruments include Automatic air shower, X-RAY inspection, Oven, Reflow Soldering, Test Tools.

Our Company

ShenZhen XZJ Technology Co., Ltd., established in 2014, has revolutionized PC and PC peripheral products through its innovative product development and sales methods. In 2015, XZJ established a strategic partnership with STHL, creating a high-tech comprehensive production enterprise integrating development, production, and sales, achieving a high degree of integration from product development to the manufacturing process.

SMT Equipment and Capability

Line order

Equipment

Component package

PCB size range

Components packing type

CHIP(H)

MIN.

MAX.

MIN.

MAX.

Panasonic Line 1

DESEN Classic-1008 + SINIC-TEK + NPM-D3 + NPM-D3 + NPM-D3 + NPM-TT2 + JT NS-1000II + AOI (double track LI-3000DP)

01005

100×90mm
Pitch=0.2mm

50×50mm

510×590mm

290 Tape (reel)
20 Tray

272000

Panasonic Line 2

DESEN Classic-1008 + SINIC-TEK + NPM-D3 + NPM-D3 + CM212 + JT JTR-1203D-N(12 temperature zone nitrogen furnace) + 3D AOI (double
track EDgeD)

01005

100×90mm
Pitch=0.2mm

50×50mm

340×250mm

256 Tape(reel)
20 Tray

206000

Panasonic Line 3

DESEN Classic-1008 + SINIC-TEKNPM-D3+ NPM-D3 + CM212M + RH-500B + JT JTR-1203D-N(12 temperature zone nitrogen furnace) + 3D AOI

01005

100×90mm
Pitch=0.2mm

50×50mm

340×250mm

256 Tape(reel)
22 Tray

206000

Panasonic Line 4

DESEN DPS-1008 + CM402L + CM212M + JT NS-1000 + AOI(JTA-320-2M)

0201

100×90mm
Pitch=0.2mm

50×50mm

510×460mm

336 Tape(reel)
20 Tray

100000

Mirae Line 5

DSP-1008 + MX400 + MX200 + MX200 +
MX200P + JT
NS1000 + AOI (JTA-315-2M)

0603

45×150mm

50×50mm

400×340mm

280 Tape(reel)
20 Tray

79000

Mirae Line 6

DSP-1008+MX200+MX200+MX200P

0603

45×150mm

50×50mm

400×340mm

120 Tape(reel)
22 Tray

30000

Total chips per hour

893000

The XZJ team consists of 200 employees, including several engineers, and the company covers an area of 6,000 square meters, equipped with comprehensive facilities including 5 SMT high-speed production lines,2 DIP production lines, 2 finished product assembly lines, and 2 functional testing production lines. Global influence is a testament to our quality and capabilities.

Product packaging

FAQ

Q1:What service do you have? We provide turnkey solution including RD, PCB fabrication, SMT, testing and other value-added service.

Q2:What are the main products of your PCB/PCBA services? Our PCB / PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering / Measurements, Consumer Electronics.

Q3:Can we inspect quality during production? Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house. Q4:How can we ensure our information should not let third party to see our design? We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level. Q5:What files required to get quotation from you? For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special requirement if you have. For PCBA quotation, please provide Gerber data / files and also BOM (bill of materials), and if you need us to do function test, please also provide the test instruction/procedure. Q6:What is standard delivery term? Delivery terms of EXW, FCA, FOB, DDU etc. are all available based on each quote. Q7:How long does it take for PCB quote? Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation. Q8:Do you have any minimum order quantity (MOQ) requirement? No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
